Liquid Level Switch

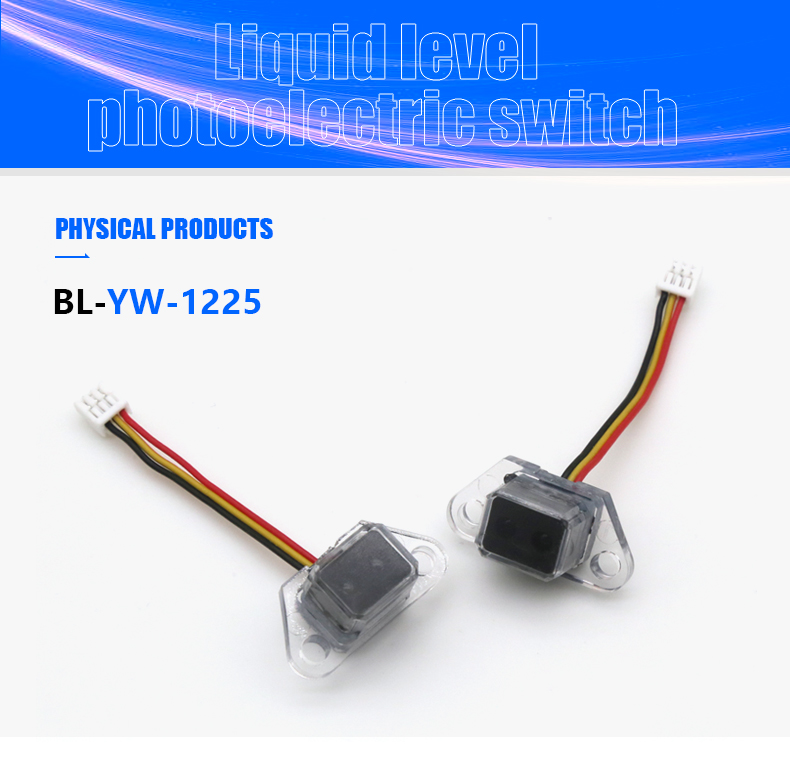

BL-YW-1225 Optical Liquid Level Switch

01.No mechanical moving components and with high reliability02.Small in size and low in cost03.Comply with Rohs standard04.The sensor itself satisfies RoHSrequirements05.Waterproofing standard Ip67Ope

  • Model: BL-YW-1225

BL-YW-1225 Optical Water Level Sensor  EPT Customized High Accuracy Liquid Level Switch Optical Water Level Sensor For HomesBL-YW-1225 Optical Water Level Sensor  EPT Customized High Accuracy Liquid Level Switch Optical Water Level Sensor For Homes

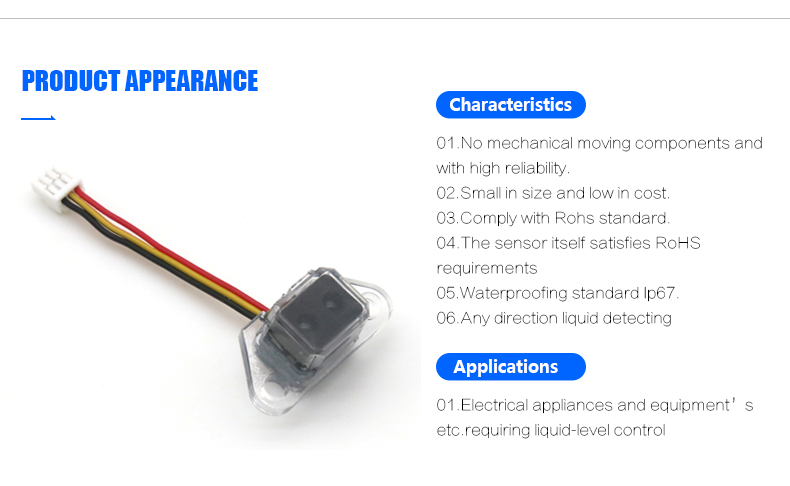

01.No mechanical moving components and with high reliability
02.Small in size and low in cost
03.Comply with Rohs standard
04.The sensor itself satisfies RoHSrequirements
05.Waterproofing standard Ip67
BL-YW-1225 Optical Water Level Sensor  EPT Customized High Accuracy Liquid Level Switch Optical Water Level Sensor For HomesBL-YW-1225 Optical Water Level Sensor  EPT Customized High Accuracy Liquid Level Switch Optical Water Level Sensor For Homes

OperatingTemperature -25℃ to 85℃
Storage Temperature -10℃ to 40℃
Pull force of terminal500gf for 1 minute
Salt mist test95% RH, 40℃ for 24 hours
Operating lifespan200,000 times
Electrical lifespan30,000 hours IF=10mA,Vce=5V
Voltage @ water status<0.4V
Voltage @no water status>4.0V
Conduct ive time<0.5S
